Isabella Cabinet Door

Be the first to review this product

$0.00

SKU

CNSI-ISBL-CONFIG

Wood Type

Width

Height

Boring and Hinge Options

Optional Non-Standard Stiles and Rails Widths

Qty

Minimum Size: 7 1/2" x 7 1/2"
Maximum Size: 26" x 72"
Stiles and Rails are 2 1/4" standard
Thickness: 1/4" Panel & 3/4" Frame
Center Rail Required at 50" and above

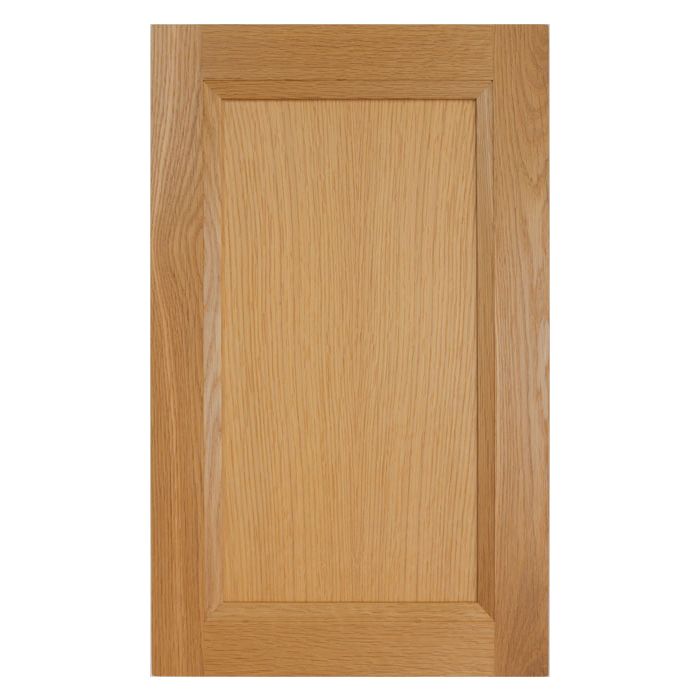

Shown in White Oak w/ clear coat

Details

The step bevel detail of this style features clean lines and an upscale look with sturdy butt joint design and subtle detailing. The Isabella can be paired with the raised panel version, the Georgia.

All Fast Cabinet Door products are hand-crafted in California, and North Carolina, and are available in a variety of wood species, including Alder, Maple, White Oak, Red Oak. As such, each door will be consistently unique. In addition, the natural characteristics of wood lend themselves to color variation, and this is also true when finish is applied.

Please note that this item will arrive as unfinished wood and will need to have a finish applied before installation.

For ordering Lazy Susan corners:
Select 1 door without boring
Select 1 door with "Lazy Susan Boring + Hinge Assembly" under Boring and Hinge Options
See the Frequently Asked Questions page for more information For susan/corner cabinet doors, is recommended to square off the edges where the pair of doors will meet. If the doors have a standard beveled outer edge, they may produce a large gap. If you'd like us to square the edge of the doors where they meet, please contact us with instructions to use OE1 outside edge on one side of each door. This adjustment will cost an additional $30 per door.

Each hinge from the Boring and Hinge Options selection is a 1/2" overlay

European Hinge Boring Specifications

All hinge boring options use a 35 mm hinge cup hole with the center of the cup located 3 inches from both the top and bottom of the cabinet door.

B Bore – For compact European press-in (doweled) hinges. Cup setback: 3 mm. Includes two 8 mm dowel holes.
A Bore – For standard European press-in (doweled) hinges. Cup setback: 5 mm. Includes two 8 mm dowel holes.
U Bore – For compact European screw-in hinges. Cup setback: 3 mm. Includes two 2 mm pilot holes for mounting screws.
T Bore – For standard European screw-in hinges. Cup setback: 5 mm. Includes two 2 mm pilot holes for mounting screws.

More Information

More Information
SKU	CNSI-ISBL-CONFIG
Display Price	Starting at $20.69 per sq. ft.
