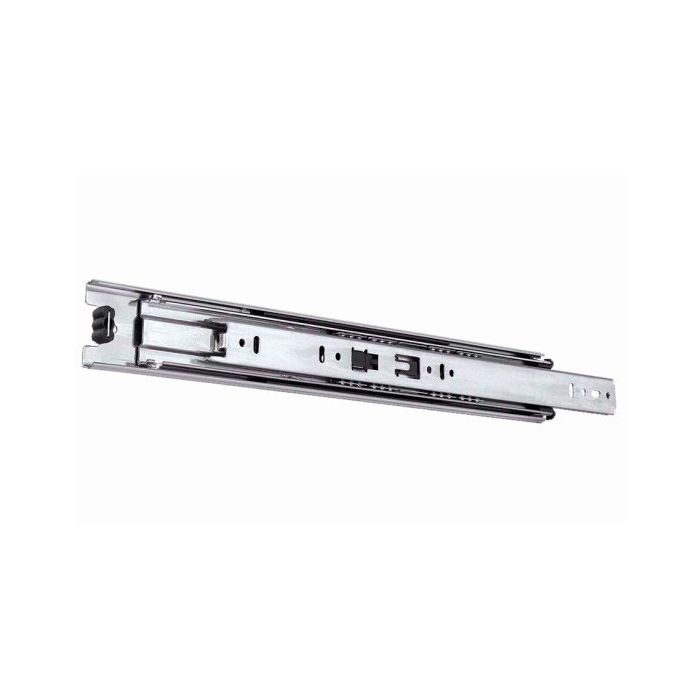

Knape & Vogt KV8400 Full Extension Drawer Slide

As low as $21.58
Only %1 left
SKU
KV8400

100 lb. class full extension drawer slide features an ergonomically designed push-in lever release for easy drawer removal. The reversed flex tabs allow improved slide performance with side clearance tolerance adjustments. 8400 is an unhanded design with traditional 32mm hole pattern that supports industry standards. Recommended maximum drawer width of 24".

8400 Specifications

8400 Install Sheet

Family 8400
Slide Class Medium Duty
Slide Type Ball Bearing
Load Class100 lb.
Mounting Side
Slide Width .50"/12.7mm
Slide Clearance .50" +.03" - 0"
Slide Height 1.79"/45.5mm
Slide Extension Full
Open Close Features Hold-In Anti Rebound
Material Steel
Recommended Max Drawer Width 24"
Disconnect Lever Release
Bearing Type Steel Ball Bearing
More Information
SKUKV8400
