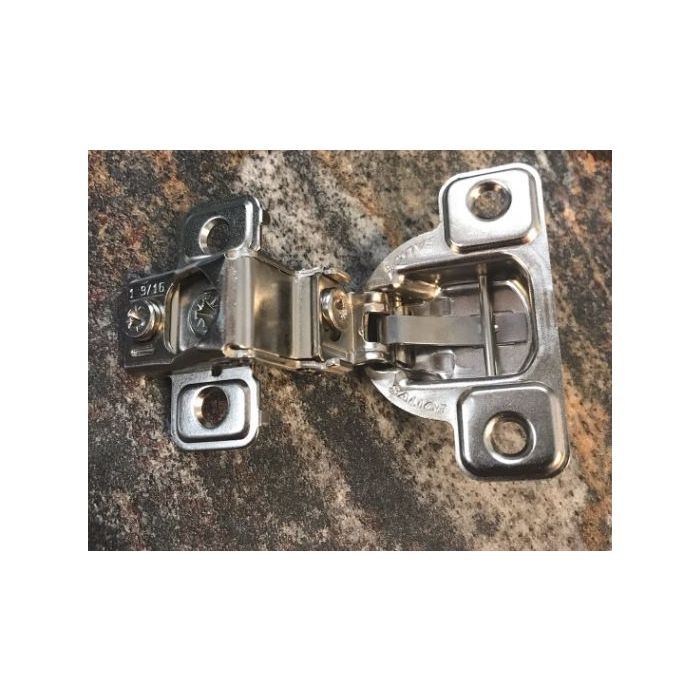

Salice 1-9/16in Overlay Compact Hinge
$10.00
SKU
CSR3E99NR
Salice Face Frame hinges, S Series. 1-9/16" overlay, 3 way adjustment. Opening angle 106ยบ, with dowels.
Required Bore Pattern: B Bore Pattern
Required Bore Pattern: B Bore Pattern
Degree of Opening: 106
Application: 1-9/16"(32mm) overlay, face frame
Closing Action: self-closing
Overlay: 1-9/16in.(32mm)
Boring Distance (DBE): (2.5mm-6.0mm)
Bore Diameter: 35mm
Cup Depth: 11mm
Series: Salice Series S "Face Frame"
| SKU | CSR3E99NR |
|---|---|
| Display Price | $10.00 per pair |
